Формирователи десны

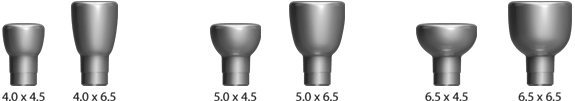

Temporary Abutments with a 3.0mm Post
| Description | Dia. | Height | Post | Style | Part Number |
|---|---|---|---|---|---|
| 4.0 x 4.5mm Temporary Abutment 3.0mm Post | 4.0mm | 4.5mm | 3.0mm | Titanium | 260-340-345 |
| 4.0 x 6.5mm Temporary Abutment 3.0mm Post | 4.0mm | 6.5mm | 3.0mm | Titanium | 260-340-365 |
| 5.0 x 4.5mm Temporary Abutment 3.0mm Post | 5.0mm | 4.5mm | 3.0mm | Titanium | 260-350-345 |
| 5.0 x 6.5mm Temporary Abutment 3.0mm Post | 5.0mm | 6.5mm | 3.0mm | Titanium | 260-350-365 |
| 6.5 x 4.5mm Temporary Abutment 3.0mm Post | 6.5mm | 4.5mm | 3.0mm | Titanium | 260-365-345 |
| 6.5 x 6.5mm Temporary Abutment 3.0mm Post | 6.5mm | 6.5mm | 3.0mm | Titanium | 260-365-365 |

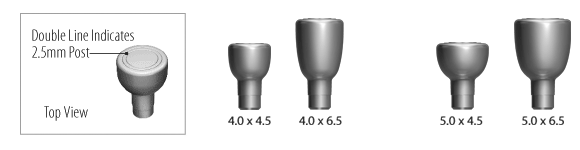

Temporary Abutments with a 2.5mm Post
| Description | Dia. | Height | Post | Style | Part Number |
|---|---|---|---|---|---|
| 4.0 x 4.5mm Temporary Abutment 2.5mm Post | 4.0mm | 4.5mm | 2.5mm | Titanium | 260-240-545 |
| 4.0 x 6.5mm Temporary Abutment 2.5mm Post | 4.0mm | 6.5mm | 2.5mm | Titanium | 260-240-565 |
| 5.0 x 4.5mm Temporary Abutment 2.5mm Post | 5.0mm | 4.5mm | 2.5mm | Titanium | 260-250-545 |
| 5.0 x 6.5mm Temporary Abutment 2.5mm Post | 5.0mm | 6.5mm | 2.5mm | Titanium | 260-250-565 |

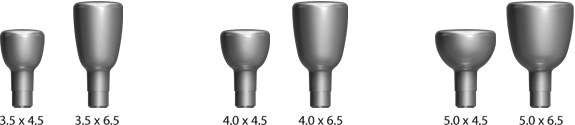

Temporary Abutments with a 2.0mm Post
| Description | Dia. | Height | Post | Style | Part Number |
|---|---|---|---|---|---|
| 3.5 x 4.5mm Temporary Abutment 2.0mm Post | 3.5mm | 4.5mm | 2.0mm | Titanium | 260-135-245 |
| 3.5 x 6.5mm Temporary Abutment 2.0mm Post | 3.5mm | 6.5mm | 2.0mm | Titanium | 260-135-265 |
| 4.0 x 4.5mm Temporary Abutment 2.0mm Post | 4.0mm | 4.5mm | 2.0mm | Titanium | 260-140-245 |
| 4.0 x 6.5mm Temporary Abutment 2.0mm Post | 4.0mm | 6.5mm | 2.0mm | Titanium | 260-140-265 |
| 5.0 x 4.5mm Temporary Abutment 2.0mm Post | 5.0mm | 4.5mm | 2.0mm | Titanium | 260-150-245 |
| 5.0 x 6.5mm Temporary Abutment 2.0mm Post | 5.0mm | 6.5mm | 2.0mm | Titanium | 260-150-265 |
Sinus Lift Temporary Abutment with a 3.0mm Post
| Description | Dia. | Height | Post | Style | Part Number |
|---|---|---|---|---|---|
| 6.5 x 2.5mm Sinus Lift Temporary Abutment 3.0mm Post | 6.5mm | 2.5mm | 3.0mm | Titanium | 260-365-503 |
| 7.0 x 2.5mm Sinus Lift Temporary Abutment 3.0mm Post | 7.0mm | 2.5mm | 3.0mm | Titanium | 260-370-503 |
Temporary Abutment Considerations
- Temporary abutments should be placed with finger pressure only, especially the 2.5mm posts.
- Temporary abutments are made of surgical grade titanium alloy Ti6Al4V.
- The hemispherical portion of a temporary abutment matches the profile of the corresponding non- shouldered abutment with the same diameter.
- Temporary abutments are designed to form a gingival sulcus and to preserve papillae during the one stage surgical procedure or after a two stage uncovering procedure.
- Choose an abutment height that is sufficient to laterally support the interproximal papillae without its being too tall such that it would receive undesirable forces from the tongue.
- The abutment height is measured from the top of the implant to the top of the abutment when the abutment is fully seated.
- Temporary abutments may be modified with a #1557 carbide bur or other carbide burs.
Healing Abutments

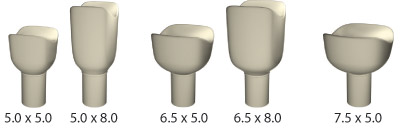

Healing Abutments with a 3.0mm Post
| Description | Dia. | Height | Post | Angle | Style | Part Number |
|---|---|---|---|---|---|---|
| 5.0 x 5.0mm 0° Healing Abutment 3.0mm Post | 5.0mm | 5.0mm | 3.0mm | 0° | Plastic | 260-350-500 |
| 5.0 x 8.0mm 0° Healing Abutment 3.0mm Post | 5.0mm | 8.0mm | 3.0mm | 0° | Plastic | 260-350-800 |
| 6.5 x 5.0mm 0° Healing Abutment 3.0mm Post | 6.5mm | 5.0mm | 3.0mm | 0° | Plastic | 260-365-500 |
| 6.5 x 8.0mm 0° Healing Abutment 3.0mm Post | 6.5mm | 8.0mm | 3.0mm | 0° | Plastic | 260-365-800 |
| 7.5 x 5.0mm 0° Healing Abutment 3.0mm Post | 7.5mm | 5.0mm | 3.0mm | 0° | Plastic | 260-375-500 |
Healing Abutments with a 2.5mm Post
| Description | Dia. | Height | Post | Angle | Style | Part Number |
|---|---|---|---|---|---|---|
| 4.0 x 5.0mm 0° Healing Abutment 2.5mm Post | 4.0mm | 5.0mm | 2.5mm | 0° | Plastic | 260-240-525 |
| 5.0 x 5.0mm 0° Healing Abutment 2.5mm Post | 5.0mm | 5.0mm | 2.5mm | 0° | Plastic | 260-250-525 |
Healing Abutments with a 2.0mm Post
| Description | Dia. | Height | Post | Angle | Style | Part Number |
|---|---|---|---|---|---|---|
| 4.0 x 5.0mm 0° Healing Abutment 2.0mm Post | 4.0mm | 5.0mm | 2.0mm | 0° | Plastic | 260-240-500 |
| 4.0 x 8.0mm 0° Healing Abutment 2.0mm Post | 4.0mm | 8.0mm | 2.0mm | 0° | Plastic | 260-240-800 |
| 5.0 x 5.0mm 0° Healing Abutment 2.0mm Post | 5.0mm | 5.0mm | 2.0mm | 0° | Plastic | 260-250-500 |
| 5.0 x 8.0mm 0° Healing Abutment 2.0mm Post | 5.0mm | 8.0mm | 2.0mm | 0° | Plastic | 260-250-800 |
Healing Abutment Considerations
- Healing abutments are polycarbonate and are indicated for cases in which an abutment is needed to develop and preserve the sulcus and papillae for 180 days or less.
- Healing abutments may be modified to meet a desired clinical shape.
- The indicated diameter of a healing abutment is measured at its widest diameter. Its height is measured from the occlusal end of the post to the highest occlusal portion of the healing abutment.
- If a healing abutment post were to fracture, removal is facilitated with the use of a round carbide bur.
