Плечевые и бесплечевые

Stealth Shouldered Abutments with a 3.0mm Post**

Description	Dia.	Height	Angle	Post	Part Number
4.0 x 1.5mm 0° Stealth Abutment 3.0mm Post	4.0mm	1.5mm	0°	3.0mm	260-300-300
4.0 x 3.5mm 0° Stealth Abutment 3.0mm Post	4.0mm	3.5mm	0°	3.0mm	260-300-400
5.0 x 2.0mm 0° Stealth Abutment 3.0mm Post	5.0mm	2.0mm	0°	3.0mm	260-300-301
5.0 x 2.0mm 10° Stealth Abutment 3.0mm Post	5.0mm	2.0mm	10°	3.0mm	260-300-302
5.0 x 3.0mm 0° Stealth Abutment 3.0mm Post	5.0mm	3.0mm	0°	3.0mm	260-300-311
5.0 x 3.0mm 10° Stealth Abutment 3.0mm Post	5.0mm	3.0mm	10°	3.0mm	260-300-312
5.0 x 4.0mm 0° Stealth Abutment 3.0mm Post	5.0mm	4.0mm	0°	3.0mm	260-300-321
5.0 x 4.0mm 10° Stealth Abutment 3.0mm Post	5.0mm	4.0mm	10°	3.0mm	260-300-322
5.0 x 6.0mm 0° Stealth Abutment 3.0mm Post	5.0mm	6.0mm	0°	3.0mm	260-300-341
5.0 x 6.0mm 0° Stealth Abutment 3.0mm Post	5.0mm	6.0mm	10°	3.0mm	260-300-342
5.0 x 8.0mm 0° Stealth Abutment 3.0mm Post	5.0mm	8.0mm	0°	3.0mm	260-300-361
6.5 x 2.0mm 0˚ Stealth Abutment 3.0mm Post	6.5mm	2.0mm	0˚	3.0mm	260-300-601
6.5 x 4.0mm 0˚ Stealth Abutment 3.0mm Post	6.5mm	4.0mm	0˚	3.0mm	260-300-621



**Abutments are packaged with their appropriate sleeves.







Stealth Shouldered Abutments with a 2.5mm Post**

Description	Dia.	Height	Angle	Post	Part Number
4.0 x 1.5mm 0° Stealth Abutment 2.5mm Post	4.0mm	1.5mm	0°	2.5mm	260-250-300
4.0 x 3.5mm 0° Stealth Abutment 2.5mm Post	4.0mm	3.5mm	0°	2.5mm	260-250-400
5.0 x 2.0mm 0° Stealth Abutment 2.5mm Post	5.0mm	2.0mm	0°	2.5mm	260-250-301
5.0 x 2.0mm 10° Stealth Abutment 2.5mm Post	5.0mm	2.0mm	10°	2.5mm	260-250-302
5.0 x 3.0mm 0° Stealth Abutment 2.5mm Post	5.0mm	3.0mm	0°	2.5mm	260-250-311
5.0 x 3.0mm 10° Stealth Abutment 2.5mm Post	5.0mm	3.0mm	10°	2.5mm	260-250-312
5.0 x 4.0mm 0° Stealth Abutment 2.5mm Post	5.0mm	4.0mm	0°	2.5mm	260-250-321
5.0 x 4.0mm 10° Stealth Abutment 2.5mm Post	5.0mm	4.0mm	10°	2.5mm	260-250-322
5.0 x 6.0mm 0° Stealth Abutment 2.5mm Post	5.0mm	6.0mm	0°	2.5mm	260-250-341
5.0 x 6.0mm 10° Stealth Abutment 2.5mm Post	5.0mm	6.0mm	10°	2.5mm	260-250-342



**Abutments are packaged with their appropriate sleeves.





Stealth Shouldered Abutments with a 2.0mm Post*

Description	Dia.	Height	Angle	Post	Part Number
3.5 x 1.5mm 0° Stealth Abutment 2.0mm Post	3.5mm	1.5mm	0°	2.0mm	260-200-150
4.0 x 1.5mm 0° Stealth Abutment 2.0mm Post	4.0mm	1.5mm	0°	2.0mm	260-200-200
4.0 x 3.5mm 0° Stealth Abutment 2.0mm Post	4.0mm	3.5mm	0°	2.0mm	260-200-400
5.0 x 2.0mm 0° Stealth Abutment 2.0mm Post	5.0mm	2.0mm	0°	2.0mm	260-200-201
5.0 x 2.0mm 10° Stealth Abutment 2.0mm Post	5.0mm	2.0mm	10°	2.0mm	260-200-202
5.0 x 4.0mm 0° Stealth Abutment 2.0mm Post	5.0mm	4.0mm	0°	2.0mm	260-200-221
5.0 x 4.0mm 10° Stealth Abutment 2.0mm Post	5.0mm	4.0mm	10°	2.0mm	260-200-222
5.0 x 6.0mm 0° Stealth Abutment 2.0mm Post	5.0mm	6.0mm	0°	2.0mm	260-200-241
5.0 x 6.0mm 10° Stealth Abutment 2.0mm Post	5.0mm	6.0mm	10°	2.0mm	260-200-242



*Abutments are packaged with their appropriate sleeves.





Stealth Acrylic Sleeves*

Description	Dia.	Height	Part Number
Stealth Acrylic Sleeve for 3.5mm Stealth Abutment (4)	3.5mm	10.0mm	260-250-103
Stealth Acrylic Sleeve for 4.0mm Stealth Abutment (4)	4.0mm	4.0mm	260-250-204
Stealth Acrylic Sleeve for 5.0mm Stealth Abutment (4)	5.0mm	6.5mm	260-250-205
Stealth Acrylic Sleeve for 6.5mm Stealth Abutment (4)	6.5mm	6.5mm	260-250-206



*Each stealth shouldered abutment is packaged with corresponding stealth acrylic sleeves.



Stealth Abutment Transfer Dies

Description	Dia.	Part Number
3.5mm Brass Stealth Abutment Transfer Die (2)	3.5mm	260-250-183
4.0mm Brass Stealth Abutment Transfer Die (2)	4.0mm	260-250-184
5.0mm Brass Stealth Abutment Transfer Die (2)	5.0mm	260-250-185
6.5mm Brass Stealth Abutment Transfer Die (2)	6.5mm	260-250-186





Aluminum Oxide Sleeves*

Description	Dia.	Height	Part Number
3.5 x 7.0mm Aluminum Oxide Sleeve	3.5mm	7.0mm	260-250-371
4.0 x 7.0mm Aluminum Oxide Sleeve	4.0mm	7.0mm	260-250-471
5.0 x 7.0mm Aluminum Oxide Sleeve	5.0mm	7.0mm	260-250-571
5.0 x 10mm Aluminum Oxide Sleeve	5.0mm	10.0mm	260-250-101

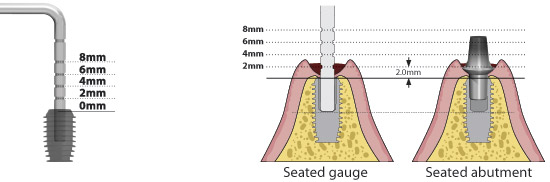

Stealth Abutment Shoulder Depth Gauge

Description	Part Number
Abutment Shoulder Depth Gauge	260-101-380







Stealth Shouldered Abutment Considerations

• Although the stealth shouldered abutment is designed for all-ceramic restorations, it may be used in conjunction with metal castings.
• Use the shoulder depth gauge to determine an appropriate abutment shoulder height, relative to the gingival tissues. The first mark on the shoulder depth gauge corresponds to a 2.0mm shoulder height of a 5.0mm stealth shouldered abutment. The second mark corresponds to a 4.0mm shoulder height, etc. If the soft tissue falls in between two marks, select the shorter of the two abutment heights for an aesthetic result.
• The diameter of an abutment is dictated by the interproximal papillae. The abutment should support the papillae without encroaching upon them.
• The stealth acrylic sleeve may be used for making an impression, for creating a temporary crown, for recording an occlusal registration, and also as a waxing sleeve or a corrective coping.
• When using the one-piece sleeve as an impression transfer, it is essential to confirm that an internal flat of the sleeve has been aligned with an external flat on the abutment.
• Prior to the intraorally cementing of a crown on a shouldered abutment, a radiograph must be taken to ensure that the crown is fully seated.
• The aluminium oxide sleeve must be ground wet either using a sintered diamond disk or a diamond wheel on a model trimmer.
• Only aluminous porcelains may be used in conjunction with the aluminum oxide sleeve.* (n.b., metal-ceramic type porcelains and pressable ceramics are NOT compatible with Bicon’s aluminum oxide sleeve.)
• A 3.5mm stealth shouldered abutment crown MUST be extra-orally cemented.

*Cerabien™ by Noritake, Vitadur Alpha by Vident and Allceram™ by Degussa-Ney are recommended for use with the Aluminum Oxide Sleeve. You may check with your porcelain manufacturer about the use of a particular porcelain with the Aluminum Oxide Sleeve.

*The expansion coefficient of the Aluminum Oxide Sleeve is: 25° to 500°C 7 x 10-6/C 25° to 800° 8 x 10-6/C

Non-Shouldered Abutments

With 0°, 15°, and 25° angled abutments and over 18 different sizes to choose from, the non-shouldered abutment is one of Bicon’s most versatile. Since it is a solid abutment, it can be prepared either intra-orally or extra-orally. The new Restorative/Laboratory kits (consisting of two sleeves and a transfer die) will facilitate impression taking, temporization, wax-ups, and the fabrication of corrective copings. The impression sleeves snap definitively onto the new non-shouldered abutments and are color coded according to the diameter of the abutment: 3.5mm = blue, 4.0mm = red, 5.0mm = yellow, 6.5mm = green and 7.5mm = purple. Click here to download the Non-Shouldered Abutment guide.



Non-Shouldered Abutments with a 3.0mm Post

Description	Dia.	Height	Angle	Post	Part Number
4.0 x 6.5mm 0° Abutment 3.0mm Post	4.0mm	6.5mm	0°	3.0mm	260-340-001
4.0 x 6.5mm 15° Abutment 3.0mm Post	4.0mm	6.5mm	15°	3.0mm	260-340-015
4.0 x 10mm 0° Abutment 3.0mm Post	4.0mm	10mm	0°	3.0mm	260-340-101
4.0 x 10mm 15° Abutment 3.0mm Post	4.0mm	10mm	15°	3.0mm	260-340-115
5.0 x 5.0mm 0° Abutment 3.0mm Post	5.0mm	5.0mm	0°	3.0mm	260-350-050
5.0 x 5.0mm 15° Abutment 3.0mm Post	5.0mm	5.0mm	15°	3.0mm	260-350-055
5.0 x 6.5mm 0° Abutment 3.0mm Post	5.0mm	6.5mm	0°	3.0mm	260-350-001
5.0 x 6.5mm 15° Abutment 3.0mm Post	5.0mm	6.5mm	15°	3.0mm	260-350-015
5.0 x 6.5mm 25° Abutment 3.0mm Post	5.0mm	6.5mm	25°	3.0mm	260-350-025
5.0 x 10mm 0° Abutment 3.0mm Post	5.0mm	10mm	0°	3.0mm	260-350-101
5.0 x 10mm 15° Abutment 3.0mm Post	5.0mm	10mm	15°	3.0mm	260-350-115
5.0 x 12mm 0° Abutment 3.0mm Post	5.0mm	12mm	0°	3.0mm	260-350-201
5.0 x 12mm 15° Abutment 3.0mm Post	5.0mm	12mm	15°	3.0mm	260-350-215
6.5 x 5.0mm 0° Abutment 3.0mm Post	6.5mm	5.0mm	0°	3.0mm	260-365-050
6.5 x 5.0mm 15° Abutment 3.0mm Post	6.5mm	5.0mm	15°	3.0mm	260-365-055
6.5 x 6.5mm 0° Abutment 3.0mm Post	6.5mm	6.5mm	0°	3.0mm	260-365-001
6.5 x 6.5mm 15° Abutment 3.0mm Post	6.5mm	6.5mm	15°	3.0mm	260-365-015
7.5 x 8.0mm 0° Abutment 3.0mm Post	7.5mm	8.0mm	0°	3.0mm	260-375-801
7.5 x 8.0mm 15° Abutment 3.0mm Post	7.5mm	8.0mm	15°	3.0mm	260-375-815

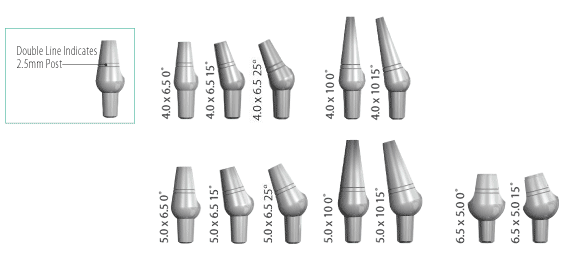

Non-Shouldered Abutments with a 2.5mm Post

Description	Dia.	Height	Angle	Post	Part Number
4.0 x 6.5mm 0° Abutment 2.5mm Post	4.0mm	6.5mm	0°	2.5mm	260-240-001
4.0 x 6.5mm 15° Abutment 2.5mm Post	4.0mm	6.5mm	15°	2.5mm	260-240-015
4.0 x 6.5mm 25° Abutment 2.5mm Post	4.0mm	6.5mm	25°	2.5mm	260-240-025
4.0 x 10mm 0° Abutment 2.5mm Post	4.0mm	10mm	0°	2.5mm	260-240-101
4.0 x 10mm 15° Abutment 2.5mm Post	4.0mm	10mm	15°	2.5mm	260-240-115
5.0 x 6.5mm 0° Abutment 2.5mm Post	5.0mm	6.5mm	0°	2.5mm	260-250-001
5.0 x 6.5mm 15° Abutment 2.5mm Post	5.0mm	6.5mm	15°	2.5mm	260-250-015
5.0 x 6.5mm 25° Abutment 2.5mm Post	5.0mm	6.5mm	25°	2.5mm	260-250-025
5.0 x 10mm 0° Abutment 2.5mm Post	5.0mm	10mm	0°	2.5mm	260-250-111
5.0 x 10mm 15° Abutment 2.5mm Post	5.0mm	10mm	15°	2.5mm	260-250-115
6.5 x 5.0mm 0° Abutment 2.5mm Post	6.5mm	5.0mm	0°	2.5mm	260-265-050
6.5 x 5.0mm 15° Abutment 2.5mm Post	6.5mm	5.0mm	15°	2.5mm	260-265-055

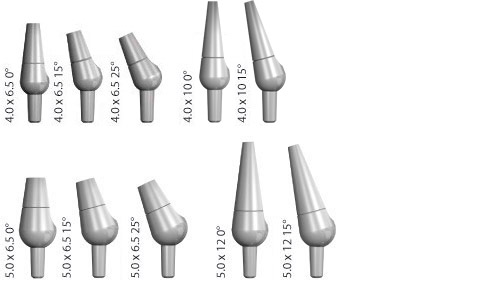

Non-Shouldered Abutments with a 2.0mm Post

Description	Dia.	Height	Angle	Post	Part Number
3.5 x 6.5mm 0° Abutment 2.0mm Post	3.5mm	6.5mm	0°	2.0mm	260-135-001
3.5 x 6.5mm 15° Abutment 2.0mm Post	3.5mm	6.5mm	15°	2.0mm	260-135-015
4.0 x 6.5mm 0° Abutment 2.0mm Post	4.0mm	6.5mm	0°	2.0mm	260-140-002
4.0 x 6.5mm 15° Abutment 2.0mm Post	4.0mm	6.5mm	15°	2.0mm	260-140-015
4.0 x 6.5mm 25° Abutment 2.0mm Post	4.0mm	6.5mm	25°	2.0mm	260-140-025
4.0 x 10mm 0° Abutment 2.0mm Post	4.0mm	10mm	0°	2.0mm	260-140-101
4.0 x 10mm 15° Abutment 2.0mm Post	4.0mm	10mm	15°	2.0mm	260-140-115
5.0 x 5.0mm 0° Abutment 2.0mm Post	5.0mm	5.0mm	0°	2.0mm	260-150-050
5.0 x 5.0mm 15° Abutment 2.0mm Post	5.0mm	5.0mm	15°	2.0mm	260-150-055
5.0 x 6.5mm 0° Abutment 2.0mm Post	5.0mm	6.5mm	0°	2.0mm	260-150-001
5.0 x 6.5mm 15° Abutment 2.0mm Post	5.0mm	6.5mm	15°	2.0mm	260-150-015
5.0 x 6.5mm 25° Abutment 2.0mm Post	5.0mm	6.5mm	25°	2.0mm	260-150-025
5.0 x 12mm 0° Abutment 2.0mm Post	5.0mm	12mm	0°	2.0mm	260-150-201
5.0 x 12mm 15° Abutment 2.0mm Post	5.0mm	12mm	15°	2.0mm	260-150-215





Non-Shouldered Abutment Considerations

• The abutment can be rotated 360˚ to reach a desired position or to achieve parallelism prior to being seated.
• The 3.5mm abutments are recommended for mandibular incisors only; 4.0mm abutments are primarily used for maxillary laterals and bicuspids; 5.0mm abutments are more universal in their use; 6.5mm and 7.5mm abutments are ideally suited for molars.
• The diameter of each Emergence Cuff corresponds to the diameter of a non-shouldered abutment.
• Do not make an impression with the emergence cuff.
• Choose the widest abutment and sleeve (see below) that will support the interproximal papillae without encroaching upon them.



Restorative/Laboratory Kits for Non-Shouldered Abutments*

Description	Dia.	Height	Part Number
3.5 x 6.5mm Non-Shouldered Restorative/Laboratory Kit	3.5mm	6.5mm	260-135-465
4.0 x 6.5mm Non-Shouldered Restorative/Laboratory Kit	4.0mm	6.5mm	260-140-465
4.0 x 10mm Non-Shouldered Restorative/Laboratory Kit	4.0mm	10mm	260-140-410
5.0 x 5.0mm Non-Shouldered Restorative/Laboratory Kit	5.0mm	5.0mm	260-150-450
5.0 x 6.5mm Non-Shouldered Restorative/Laboratory Kit	5.0mm	6.5mm	260-150-465
5.0 x 10mm Non-Shouldered Restorative/Laboratory Kit	5.0mm	10mm	260-150-410
5.0 x 12mm Non-Shouldered Restorative/Laboratory Kit	5.0mm	12mm	260-150-412
6.5 x 5.0mm Non-Shouldered Restorative/Laboratory Kit	6.5mm	5.0mm	260-165-450
6.5 x 6.5mm Non-Shouldered Restorative/Laboratory Kit	6.5mm	6.5mm	260-165-465
7.5 x 8.0mm Non-Shouldered Restorative/Laboratory Kit	7.5mm	8.0mm	260-175-480



*Each kit contains (1) Transfer Die, (1) Impression/Waxing Sleeve, and (1) Temporization Sleeve.





Temporization Sleeves for Non-Shouldered Abutments

Description	Dia.	Part Number
3.5mm Non-Shouldered Temporization Sleeve (2)	3.5mm	260-135-165
4.0mm Non-Shouldered Temporization Sleeve (2)	4.0mm	260-140-165
5.0mm Non-Shouldered Temporization Sleeve (2)	5.0mm	260-150-165
6.5mm Non-Shouldered Temporization Sleeve (2)	6.5mm	260-165-165
7.5mm Non-Shouldered Temporization Sleeve (2)	7.5mm	260-175-165





Non-Shouldered Prosthetic Components Considerations

• The impression sleeves and transfer dies are color coded according to the corresponding diameter of the non-shouldered abutment:
  3.5mm = blue, 4.0mm = red, 5.0mm = yellow, 6.5mm = green, and 7.5mm = purple.
• The sleeves may be used for impression making, temporization, corrective copings, and/or as waxing sleeves.
• The temporization sleeves may be used in lieu of the emergence cuffs.
• Always confirm the complete seating of snap-on sleeves with either the non-shouldered abutment or colored abutment transfer die.
• It is paramount that the proper abutment transfer die height be chosen for pouring of a stone model, since all transfer dies of the same color will snap into an impression sleeve of that color.
• The diameter and height of the transfer dies are sized to match the diameter and height of a corresponding non-shouldered abutment.
• Although possible, avoid making an impression using the tooth colored temporization sleeves, since they are not color coded with their corresponding transfer dies and they are more retentive.
• Sleeves may be easily modified to suit a particular clinical need.
• Current versions of the non-shouldered abutment have a groove approximately 3.0mm above its height of contour providing retention for the new snap-on impression and temporization sleeves.
• If a sleeve is used as a waxing sleeve, the internal snap ring should be removed with a bur.



Emergence Cuffs for Non-Shouldered Abutments

Description	Dia.	Part Number
4.0mm Emergence Cuff (4)	4.0mm	260-140-010
5.0mm Emergence Cuff (4)	5.0mm	260-150-010
6.5mm Emergence Cuff (4)	6.5mm	260-165-065





Emergence Cuff Considerations

• The diameter of each emergence cuff corresponds to the diameter of a non-shouldered abutment.
• Do not make an impression with an emergence cuff.
• If you prefer to make an impression of a non-shouldered abutment with a plastic sleeve, please refer to above, Restorative/Laboratory Kits for Non-Shouldered Abutments, section.
• The temporization sleeves may be used in lieu of the emergence cuffs.
